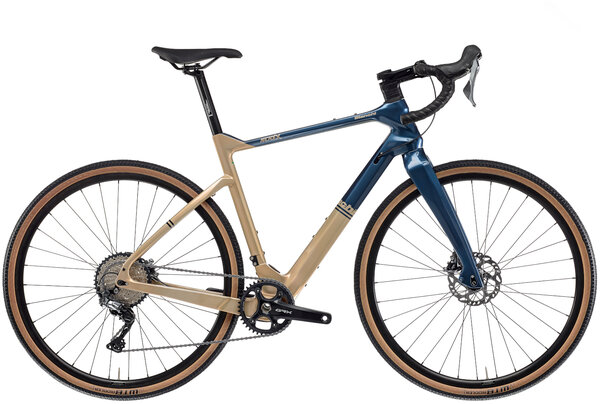

Bianchi Arcadex GRX 600 - 2021
The Arcadex gravel bike perfectly combines a close connection with nature with the exhilarating rush of Bianchi racing DNA. It delivers a distinct performance for the modern gravel rider.
The Arcadex's sculpted carbon fiber frame is incredibly responsive and is primed to perform as soon as you push on the pedals—whether riding to explore or indulging your competitive spirit. Take off-road capability, combine it with the speed and aesthetics you love about your road bike, then you have the Arcadex.
The clean lines of the bike are maintained with all hydraulic cables routed internally and the dedicated alloy seatpost has been developed for the ultimate streamlined, integrated look. Talking of streamlined, the alloy stem and spacers have been created by Bianchi for a better head tube connection, with the 1 1/8" to 1.5" head tube providing stability at speed and under braking.
The characteristics of the bike are maintained across the frame sizes. The chainstay length of 415mm for the 47-57cm frames and 420mm for the largest 59cm and 61cm models means that the bike behaves the same no matter what size you choose. The frame design has been aerodynamically optimized for performance, while clearance for 700c x 42 or 650B x 47 tires delivers more than enough scope to tackle any rough terrain you might choose. Naturally, you'll find eyelets for mudguards and carrier racks, so the Arcadex can be easily transformed into a high-speed bikepacking machine.
|Frame||Arcadex Carbon, 1.5" Headset, Seatpost Diam. 31.6mm, Thru Axle 12x142mm, Flat Mount Caliper, PressFit 41 BB, Compatible With 42mm Tires, Mudguard and Rear Carrier Compatible|
|Fork||Bianchi Full Carbon Disc, 1.5" Head, Flat Mount Caliper, Thru Axle 12x100mm|
|Wheels||Alexrims GD24 Disc 622-21, Tubeless Ready|
|Tires||WTB Riddler Race 700c x 37|
|Bottom Bracket||Shimano BB-RS500-PB, Press Fit|
|Crankset||Shimano GRX 600 FC-RX600 40T, Crank Length: 170mm-XS-SM, 172.5mm-MD-LG, 175mm-XL|
|Shifters||Shimano GRX 600 ST-RX600 1x11sp|
|Rear Derailleur||Shimano GRX RD-RX812 11sp|
|Cassette/Freewheel||Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T|
|Chain||KMC X11-1 EPT Finish|
|Rotors||Shimano SM-RT70, Diam. 160mm|
|Brake Levers||Included w/Shifters|
|Handlebars||Aluminum 6061, Reach 70mm, Flare Angle 16°, Drop 120mm x 40cm, 130mm x 42/44cm, Size: 40cm=XS/SM, 42cm=MD/LG, 44cm=XL|
|Tape/Grips||La Spirale Ribbon Cork|
|Stem||FSA ST-OS-188/SMR-0°, Alloy 6061, Rise 0°, Ext: 80mm-XS/SM, 100mm-MD, 120mm-LG/XL|
|Headset||FSA SMR HS|
|Seatpost||Reparto Corse Alloy 6061 Shaft, Alloy Head, 15mm Offset, 31,6mm, Length: 300mm-47cm, 350mm-50/63cm|
|Saddle||Selle Royal 2315HRN, Steel Rail, Open, 250x148mm|
* Subject to change without notice.
|Gold/Blue / X-Small||08032809800958||YQBX3IXSGY|
|Gold/Blue / Small||08032809800910||YQBX3ISMGY||210000037010|
|Gold/Blue / Medium||08032809800897||YQBX3IMDGY||210000037282|
|Gold/Blue / Large||08032809800873||YQBX3ILGGY|
|Gold/Blue / X-Large||08032809800934||YQBX3IXLGY|
