Jamis Komodo 24 - 2022
$549.95
Details
KOMODO TRAILBIKE DNA, FIT FOR KIDS
This is where it all starts. With a real mountain bike cockpit, meaty 2.8 tires and powerful disc brakes, Komodo 24 isn't shy about its intentions. Overbuilt yet lightweight. Big performance in a small package.

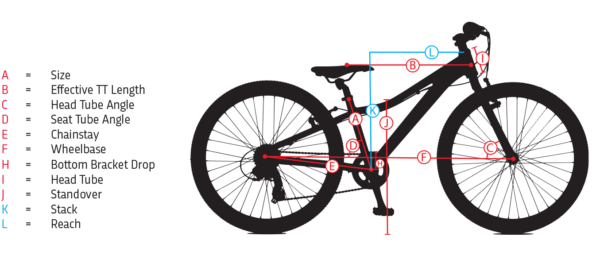

| SIZE | 12? B |
|---|---|
| TT EFFECTIVE | 20.16 / 512 |
| HT ANGLE | 68° |
| ST ANGLE | 73° |
| CHAINSTAY | 16.54 / 420 |
| WHEELBASE | 39.53 / 1004 |
| FORK RAKE | 1.77 / 45 |
| BB HEIGHT | 10.61 / 269.5 |
| HEADTUBE | 4.33 / 110 |
| STANDOVER | 23.43 / 595 |
Specs
| Frame | 6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger |
|---|---|
| Fork | Unicrown, 6061 aluminum, 28.6 Cr-Mo steerer |
| Wheels | Alloy 36H black anodized disc rims, alloy 6-bolt disc hubs with QR, 14G black electroplated spokes |
| Tires | CST MTB, 24 x 2.8" |
| Bottom Bracket | Sealed cartridge |
| Crankset | Forged alloy crank, 152mm, 32T chainring and protective outer ring |
| Shifters | Shimano SL-M315, 8 Speed |
| Rear Derailleur | Shimano TX-800 rear |
| Cassette/Freewheel | Shimano HG-318, 11-34T, 8 Speed |
| Chain | KMC Z7 |
| Brakes | Tektro M280 mechanical disc, 160mm rotors with Tektro youth specific levers |
| Handlebars | Jamis XC alloy riser, 31.8 x 20mm rise x 600mm |
| Tape/Grips | Kraton |
| Stem | Jamis XC alloy threadless, 31.8 x 6 ° rise x 60mm |
| Headset | Zero-stack internal cup threadless, 15mm cone spacer |
| Seatpost | Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp |
| Saddle | Jamis ATB Youth |
| Pedals | MTB platform, hi-impact resin |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Amber Wave / 24-inch | 845436089164 | 07-3677OR | 210000040578 |
| Ano Kinetic Grey / 24-inch | 845436089171 | 07-3678GY | 210000040577 |
